The Art Of Future Vertical Living

The Art Of Future
Vertical Living

NKY Product

NK-1E

N K - 1 E

NK-2X

N K - 2 X

NK-3P

N K - 3 P

NK-5S

N K - 5 S

NK-6TUBE

N K - 6 TUBE

NK-1E

N K - 1 E

NK-2X

N K - 2 X

NK-3P

N K - 3 P

NK-5S

N K - 5 S

NK-6 TUBE

N K - 6 TUBE

NKY – Costomer Profile

No.	Type	Product Segment	Customer Profile – Home Owner	Customer Profile – Small Office
1	NK-3	Luxury	High-net-worth individuals-Large-scale entrepreneurs-Expatriates	Boutique law firms Private equity offices
2	NK-2	Affluent / Upper–Upper Middle	Specialist doctors – Corporate directors -Senior lawyers	Trading houses – Corporate consulting firms
3	NK-1	Volume Market I	Executives – Mid-level entrepreneurs – Emerging affluent	Startups – Creative agencies
4	NK-5	Volume Market II	Senior managers – Young entrepreneurs – Local officials	Notary offices – Architectural studios – Accounting firms
5	NK-6	Special Market	Young professionals – Young families – Emerging affluent	Clinics – Houses with limited space

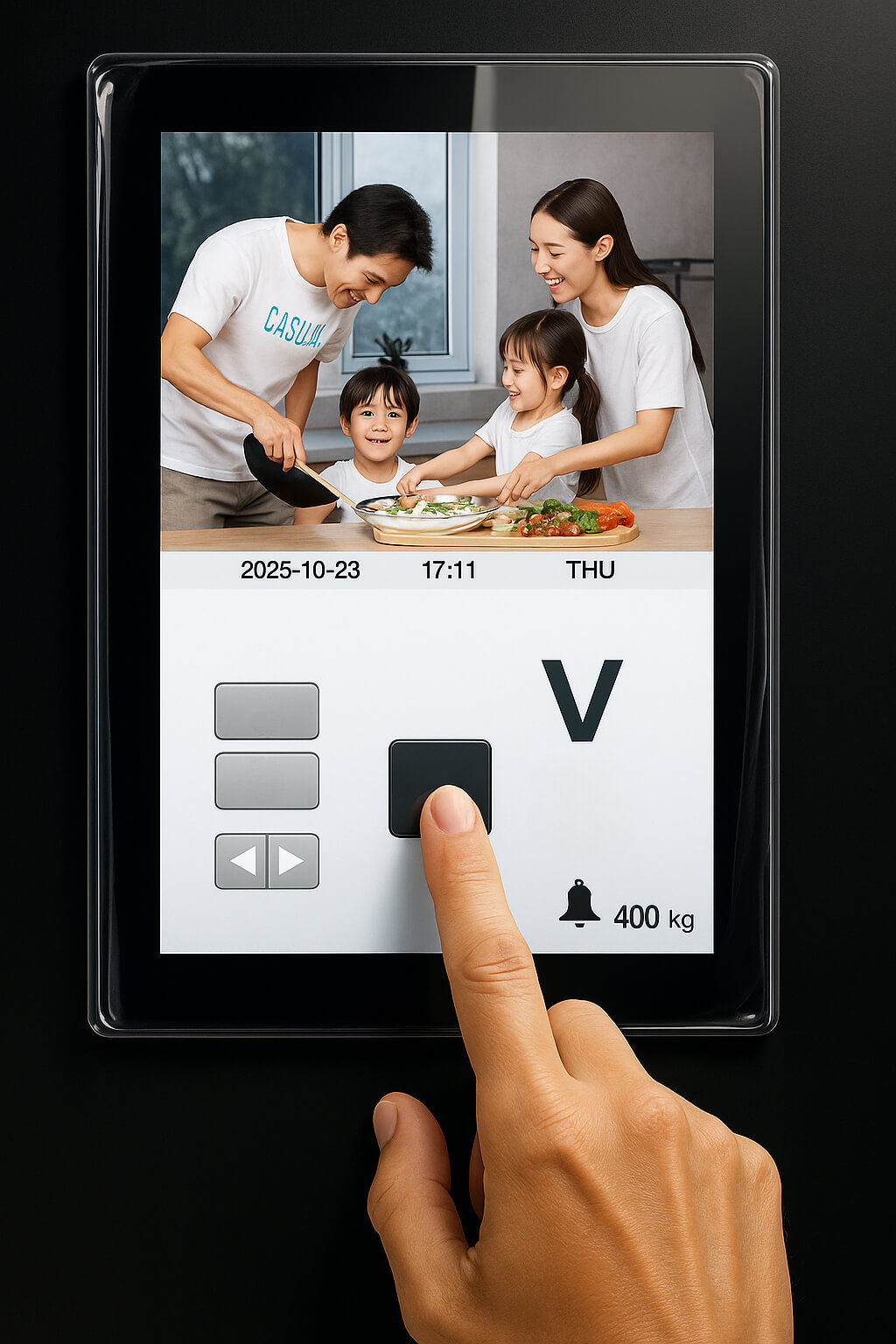

Product(1)

The Art Of Future Vertical Living

NK-1E

Structure Type:

Aluminum Alloy – Outdoor / Indoor
Steel Modular
360° Panoramic View

Basic Specifications:

Pit Depth: 150 mm – 250 mm
Capacity: 250 kg / 320 kg / 400 kg
Minimum Overhead (OH): 2500 mm
Power Supply: 1 Phase, 220 Volt
Motor Power: 1.1 kW
Others: Marble Flooring, Ambient Lighting, GSM Interphone

NK1(1)

NK-2x

Structure Type:

Concrete – Unit Only
Steel Modular Shaft

Basic Specifications:

Pit Depth: 150 mm to 250 mm
Capacity: 250 kg, 320 kg, 400 kg
OH Min: 2500 mm
Power: 1 Phase 220 Volt
Motor Power: 1.1 kW
Travel Speed: 0.4 m/s
Rope Configuration: 2:1
Others: Marble Flooring, Ambient Lighting, GSM Interphone

NK2(1)

NK-3P

Structure Type:

Aluminum Alloy
Panoramic View 270 Degree

Basic Specifications:

Pit Depth: 80 mm
Capacity: 250 kg, 320 kg, 400 kg
OH Min: 2400 mm
Power: 1 Phase 220 Volt
Motor Power: 1.1 kW
Travel Speed: 0.3 m/s
Rope Configuration: 1:1
Others: Marble Flooring, Ambient Lighting, GSM Interphone

NK 3P(1)

NK-5S

Structure Type:

Aluminum Alloy
Panoramic View 270 Degree

Basic Specifications:

Pit Depth: 80 mm
Capacity: 250 kg, 320 kg, 400 kg
OH Min: 2500 mm
Power: 1 Phase 220 Volt
Motor Power: 1.1 kW
Travel Speed: 0.4 m/s
Rope Configuration: 2:1
Others: Marble Flooring, Ambient Lighting, GSM Interphone

NK 5S(1)

NK-6 TUBE

Structure Type:

Aluminum Alloy
Tube and Half Tube
Panoramic View 360 Degree

Basic Specifications:

Pit Depth: 120 mm
Capacity: 320 kg, 400 kg
OH Min: 2800 mm
Power: 1 Phase 220 Volt
Motor Power: 1.1 kW
Travel Speed: 0.3 m/s, 0.4 m/s
Rope Configuration: 2:1
Others: Marble Flooring, Ambient Lighting, GSM Interphone

NK 6 TUBE(1)
